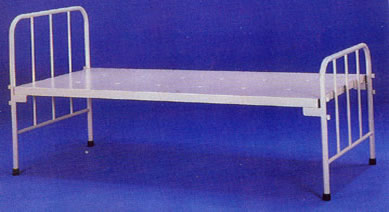

HF1 - Fixed height |
 |
WARDCARE BED :
Overall appro. size : 2095mm L x 915mm W x 605mm H. Suitable for matress size:1980.. Lx 910mm W.MS sheet top.Head bow 1062mm H. Foot bow 825mm H. Both bows with one horizontal and three vertical tubular supports and rubber feet. Provision for mosquito net poles. Pretreated and powder coated.Supplied in kdc.
|

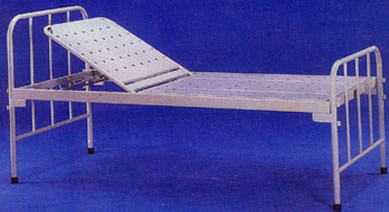

HF2 - Fixed Height ,Raising Backrest (Ratchet) |
 |
Overall approx. Size: 2100mm L x 900mm W x 590mm H.
Suitable for mattress size: 1980mm L x 910mm W.Two section perforated top. backrest adjustment on ratchet. head bow 1050mm H. Foot bow 800mm H. Both bows with one horizontal & three vertical tubular supports, four IV rod locations & rubber feet. Provision for mosquito net poles. Pretreated & powder coated. Supplied in kdc |

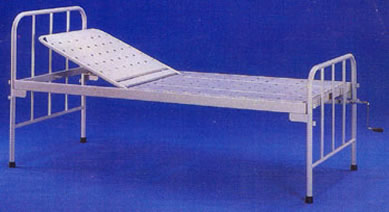

HF3 - Fixed Height ,Raising Backrest (Crank)
|
 |
Overall Approx. Size : 2100mm L x 900mm W x 580mm H.
Suitable for mattress size: 1980mm L x 910mm W. Two section perforated top. Handlewound backrest adjustment. Head bow 1050mm H. Footbow 810mm H. Both bows with one horizontal & three vertical tubular supports, four IV rod locations & rubber feet. Provision for mosquito net poles. Pretreated & powder coated. Supplied in kdc |
HF4-Fixed Height ,Raising Backrest (Crank)
|
 |
All specifications as 0103 except for bed fitted with four swivel castors of 100 mm dia., two with brakes, instead of rubber feet. Supplied in kdc
|

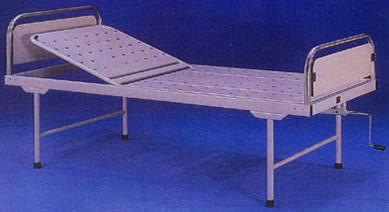

HF5 - Fixed Height ,Raising Backrest |
 |
Overall Approx. size : 1990mm L x 900mm W x 590mm H.
Suitable for mattress of size: 19250mm L x 900mm W. Two section preformatted top. Handlewound back rest adjustment SS tubular head and foot bows with laminated panels and rubber feet. Four IV rod locations. Pretreated and powder coated. Supplied in kdc.
|

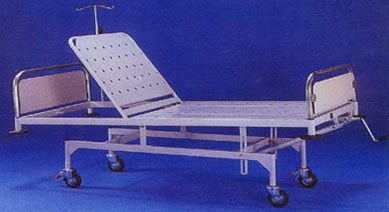

HF6-Fixed Height ,Raising Backrest,Two way Logitudinal tilt |
 |
Overall Approx. Size : 2150mm L x 1010mm W x 605mm H.
Suitable for mattress size 1980mm L x 910mm W. Two section perforated top. Two separate screws for backrest & Trendelenburg / Reverse Trendelenburg adjustments. removable SS tubular head & foot bows with laminated panels. four swivel castors, 125mm dia., two with brakes complete with corner buffers, SS telescopic IV rod with four locaions. Pretreatment & powder coated. Supplied in kdc |
HF7 -Bed Side Locker-NH(SS TOP) |
|
Approx Size : 380mm square. Height 800mm. Machine pressed double bent CRCA sateel sheet locker box with door. Superimposed SS top with raised edge on three sides. MS tublular legs with rubber feet. Pretreated & powder coated
|
HF8 - Ward care bed side locker |
|
Approx. Size : 380mm square. Height 800mm. Locker made from machine pressed CRCA steel sheets enclosed on three sides, having one box & one drawer. Fitted with super imposed SS top with raised edge on three sides. Mounted on four swivel ball castors, 50mm dia with buffers at rear. pretreated & powder coated.
|
HF9- Steel Stool |
|
Approx. Size : 290mm square. Height 500mm. Framework of MS press bent angles & channels. Machine pressed CRCA steel sheet top. Legs fitted with rubber feet. Pretreated & powder coated
|

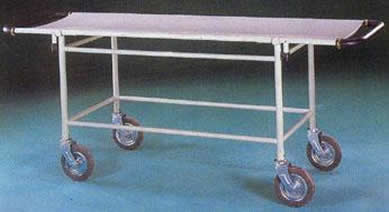

HF10 - Stretcher Trolley |
 |
Overall Approx. Size: 2020mm L x 550mm W x 840mm H.
MS tubular framework mounted on four swivl castors, 200 mm dia. Removable stretcher top made of aluminium sheet supported on tubular frame. Pretreated & powder coated. Supplied in kdc
|
HF11 - Instrument Trolley |
|
Constructed from completely stainless steel and with two shelves.With castors.complete with S/S bowl.
Width : 710
Depth : 510
Height : 780
|
HF12 - Dressing Trolley |
|
Constructed from completely stainless steel. Two shelves are tray shaped.Push handle.Equipped with bottle holders on top shelf, rectangular waste bin and bowl.Mounted on castors
Width : 890
Depth : 510
Height : 850
|

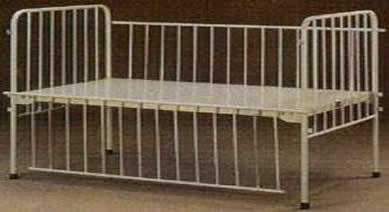

HF13 - Arrive - Pediatric Bed with Drop Side Rails |
 |
Overall Approx Size: 1500 L x 850mm W x 590mm H
Suitable for mattress size : 1370mm L x 760mm W.
MS Sheet top. Both bows of 1060mm H with one horizontal support and seven vertical supports and rubber feet. Provision for mosquito net poles. Full length rails. pretreated and powder coated. Supplied in kdc |
